Up to this point, we specified a prior joint distribution using information from both a graphical model and a statistical model. In this chapter, we combine the two model types, graphical models and statistical models, into one visualization called the *generative DAG*. Recall that DAG is an acronym for directed acyclic graph. This concept was introduced in the Graphical Models chapter. The advantage of this is that the *generative DAG* unites real-world measurements (e.g. getting a credit card) with their math/computation world counterparts (e.g. \(X \sim \textrm{Bernoulli}(\theta)\)) without requiring the cognitive load of flipping back-and-forth between the graphical and statistical models. This explicit and visualizable mapping enables communication among business stakeholders who can focus on how real-world measurements are being modelled, and the technical people who focus on more computationally-minded details like the tractability8 *Tractability*: Allowing a mathematical calculation to proceed toward a solution or enabling quick enough computation by computer to be practically relevant. of the model. The *generative DAG* becomes a universal language for business stakeholders and statisticians to collaborate with YOU, the business analyst. And as will be shown in the next two chapters, generative DAGs, when combined with data, enable Bayesian inference to be automated (yay! no more manual calculations using Bayes rule).

*** A statistical model is a mathematically expressed recipe for creating a joint distribution of related random variables. Each variable is defined either using a probability distribution or a function of the other variables. Statistical model and generative DAG will be used interchangeably. The term statistical model is just the mathematically expressed recipe. Generative DAG is the graphically expressed recipe with an embedded statistical model. Note: Most terms used in this book are commonplace in other texts. However, the definition of generative DAGs is unique to this text. Most other textbooks will refer to these as Bayesian networks or DAGs, but the statistical model is often presented separately or via less intuitive factor graphs. In later chapters, the causact package in R will be used to quickly create these generative DAGs and to automate the accompanying computer code. As we will see, this use of generative DAGs accelerates the BAW more than any other representation.

To build a generative DAG, we combine a graphical model with a *statistical model*\(^{***}\) into a single unifying representation. Figure 14.1 is an example of doing this. The objective in building generative DAGs is to capture how we might go about simulating real-world measurements using the mathematical language we’ve been learning. Good generative DAGs are recipes for simulating a real-world observation in a way that reflects our domain knowledge. Then, with a generative DAG and some actual data, we will ask the computer to do Bayesian inference for us and to output an updated joint distribution of the random variables in our DAG.

The creation of a generative DAG mimics the creation of graphical models with accompanying statistical models. Both the structure of the DAG and the definition of the random variables should reflect what a domain expert knows, or wants to assume, about the business narrative being investigated.

Recall the Chili’s example from the previous chapter. Figure 14.1 shows a generative DAG for this model. Some elements of this DAG are easily digested as we have seen them before. For example, the *Sales Increase* (\(X\)) node’s prominent feature is that it can only take on two-values, *yes* or *no*. For us, we model these binary-valued real-world outcomes by our mapping \(x \sim \textrm{Bernoulli}(\theta)\). Often, modelling random variables is made easier by first considering their support. The support of a random variable is the set of realizations that have a strictly positive probability of being observed. Modelling binary-valued random variables always leads you to using a Bernoulli distribution (or binomial if counting the number of successes).

Other elements of the DAG are new. Notice, `theta`

is now spelled out phonetically as opposed to using the actual Greek letter math symbol of \(\theta\). While this need not be done when drawing a generative DAG by hand, we phonetically spell out the Greek letter \(\theta\) as `theta`

here because computer code and computer-generated DAG visuals lack easy support for the Greek alphabet. Additionally, and more importantly, we switch to using lowercase notation for both `x`

and `theta`

as we want to highlight that basic ovals in generative DAG models represent a single realization of the random variable. *Our mental models* for generative DAGs should think of the basic oval representing a single realization. Later chapters will introduce the representation of more than one realization.

As we build these models, it is often easiest to build and read them from bottom to top; start by converting your target measurement, in this case whether a store increases sales, to a brief real-world description (e.g. Sales Increase). This description is the top-line of the oval. For rigor, a more formal definition should be stored outside of the generative DAG in a simple text document that can be referenced by others.

Every node will also have a mathematical line (e.g. x ~ Bernoulli(theta)). The mathematical line will always follow a three-part structure of 1) Left-hand side, 2) Relationship Type, and 3) Right-hand side:

Each line of a statistical model follows one of two forms: \(LHS \sim Probability \textrm{ } Distribution\) \(\hspace{2cm}\) or \(LHS = Mathematical \textrm{ } Function\)

**Left-hand side (LHS)**: a mathematical label for a realization of the node (e.g. \(x\) or \(y\) or whatever symbol/word you choose). The purpose of the label is to have a very short way of referring to a node. To that end, you cannot include spaces in this label and try to keep it at five letters or less.**Relationship Type**: There are two types of relationships that can be specified:

- a
*probabilistic*relationship, denoted by the \(\sim\) symbol, where the LHS node’s value is determined in a way that has some inherent randomness, such as the outcome of a coin flip. Or, - a
*deterministic*relationship denoted by an \(=\) symbol. A deterministic relationship means the LHS node’s value is determined with zero uncertainty as a function of its inputs.

**Right-hand side (RHS)**: either a known probability distribution governing the node’s probabilistic outcome (e.g. \(\textrm{Bernoulli}(\theta)\)) or a mathematical function defining the node’s value (e.g \(y+z\)). In both cases, any parameters/variables/inputs in the RHS must be represented by a parent node to the current node in your model.

To model subsequent nodes, consider any parameters or variables on the right-hand side of the mathematical lines that remain undefined; all of these undefined parameters must be defined on the LHS of a parent node. Hence, for \(x \sim \textrm{Bernoulli}(\theta)\), \(\theta\) should be (and is) the LHS of a parent node of \(x\).

To learn more about the uniform distribution or any common probability distribution, consult Wikipedia; e.g. https://en.wikipedia.org/wiki/Continuous_uniform_distribution. The Wikipedia entry for every distribution has a nice graph for the probability density function (PDF) and also explicit formula, when available, for the PDF,CDF,mean,etc. on the right side. It is a great resource that even mathematicians refer to regularly.

Now to have a complete statistical model, we need a recipe for how all the random variables of interest can be generated. Previously, when doing Bayes rule calculations by hand, we considered a recipe for \(\theta\) with only two possible values. However, as we move towards using the computer to do Bayesian inference for us, we now consider all of the possibilities - any value between 0 and 1. Figure 14.2 introduces us to the \(\textrm{uniform}\) distribution. The \(\textrm{uniform}(a,b)\) distribution is a two-parameter probability distribution with the property that all real numbers between \(a\) and \(b\) are generated with equal probability. Hence, for our application where \(\theta\) represents a probability restricted to be between 0 and 1,We will often write probabilities as decimals when talking about percentages to a computer. Example, twelve percent would be written as 0.12. Hence, all possible probability values are represented by any real number from 0 to 1. we use \(\textrm{uniform}(0,1)\) to represent our consideration of the infinite possible values of success probability ranging from 0% to 100%.

Figure 14.2 provides a complete mathematical line for \(\theta\) and since all RHS parameters/variables are defined - it represents a complete generative DAG. The top line of each oval is a meaningful real-world description of the random variable and the bottom line gives the math.

Notice that the generative DAG is a recipe for simulating or generating a single sample from the joint distribution - read it from top-to-bottom: 1) first, simulate a random sample value of \(\theta\), say the realization is 10%, and then 2) use that sample value to simulate \(x\), which assuming \(\theta = 10\%\), is either 0 with 90% probability or 1 with 10% probability.

For illustrating the generative aspect of a generative DAG, we can use simple R functions to get a joint realization of the two variables. We model \(\theta\) as \(\textrm{Uniform}(0,1)\) and \(x \sim \textrm{Bernoulli}(\theta)\) computationally using the \(\textrm{R}\) functions `runif`

and `rbern`

(i.e. `rfoo`

for the uniform distribution and Bernoulli distribution, respectively). Hence, a random sample from the joint distribution for realizations \(\theta\) and \(x\) can be generated with the following code:

```
library(causact) # used for rbern function
set.seed(1234)
# generate random theta: n is # of samples we want
theta = runif(n=1,min=0,max=1)
theta # print value
```

`## [1] 0.1137034`

`## [1] 0`

For the particular model above, the recipe picked a random \(\theta\) of 11.4% and then, using that small probability of success, generated a random \(x\) with 11.4% chance of giving a one. Unsurprisingly, the random sample from \(x\) was zero. Sampling more realizations of \(x\) would eventually yield a success:

`## [1] 0 0 0 0 0 0 0 0 0 0 0 1`

Generative models are abstractions of a business problem. We will use these abstractions and Bayesian inference via computer to combine prior information in the form of a generative DAG and observed data. The combination will yield us a posterior distribution; a joint distribution over our RV’s of interest that we can use to answer questions and generate insight. For most generative DAGs, Bayes rule is not analytically tractable (i.e. it can’t be reduced to simple math), and we need to define a computational model. This is done in `greta`

and is demonstrated in the next two chapters.

Figure 14.2 provides a generative recipe for simulating a real-world observation. As in the Bayesian Inference chapter, we can then use data to inform us about which of the generatable recipes seem more consistent with the data. For example, we know that the success of three stores in a row would be very inconsistent with a recipe based on the pessimist model. Thus, reallocating plausibility in light of this type of data becomes a milestone during our data analysis.

For the Chili’s model, the reallocation of probability in light of data from three stores will be done in such a way as to give more plausibility to \(\theta\) values consistent with the observations and less plausibility to the other \(\theta\) values.

First, the \(\textrm{Sales Increase}\) node, \(x\), is
shaded darker to indicate that it is an *observed* random
variable (i.e. it is the observed data). Second, to graphically
represent a random variable whose structure is repeated, like \(x\) for each of the 3 stores that get the
renovation, you surround the oval by a rectangle, called a
*plate*.

In Figure 14.3, there are some additional elements shown in the generative DAG. *Observed* data - in contrast to latent parameters or unobserved data - gets represented by using fill shading of the ovals (e.g. the darker fill of \(Sales Increase\)). Also, rectangles called *plates* are used to indicate repetition of the enclosed random variables. In this case, the plate indicates we observe multiple store’s success outcomes.

The \(\textrm{Success Probability}\)
random variable, \(\theta\), is
*unobserved* and uses a lighter fill shade than that used for
\(x\). Unobserved variables are often
referred to as *latent variables*. This distinction becomes
important when representing the generative model within R.

Text in the lower right-hand corner of the plate indicates how variables inside the plate are repeated and indexed. In this case, there will be one realization of \(x\) for each observation. The letter \(i\) represents a short-hand label used to index the observations. For example, `x[i]`

is the \(i^{th}\) observation of `x`

and therefore, `x[2]`

would the \(2^{nd}\) observation of `x`

. The `[3]`

in the lower-right hand corner represents the number of repetitions of the RV, in this case there are 3 observations of stores: `x[1]`

, `x[2]`

, and `x[3]`

.

Since the \(\theta\) node lacks a plate, the generative recipe implied by Figure 14.3 calls for just one realization of \(\theta\) to be used in generating all 3 observations of \(x\). In other words, our recipe assumes there is just one *true* \(\theta\) value and all observations are Bernoulli trials with the same \(\theta\) value. The question we will soon answer computationally is “how to reallocate our plausibility among all possible *true* values of \(\theta\) given that we have observed 3 observations of \(x\)?”

More rigorous mathematical notation and definitions can be found in the lucid recommendations of Michael Betancourt. See his work *Towards a Principled Bayesian Workflow (Rstan)* for a more in-depth treatment of how generative models and prior distributions are only models of real-world processes. https://betanalpha.github.io/assets/case_studies/principled_bayesian_workflow.html. Additionally, Betancourt’s *Generative Modelling* (https://betanalpha.github.io/assets/case_studies/generative_modeling.html) is excellent in explaining how models with narrative interpretations tell a set of stories on how data are generated. For us, we will combine our generative DAGs with observed data to refine our beliefs about which stories (i.e. which parameters) seem more plausible than others. Additionally, sometimes

**Exercise 14.1 **Write `R`

code using `runif()`

and `causact::rbern()`

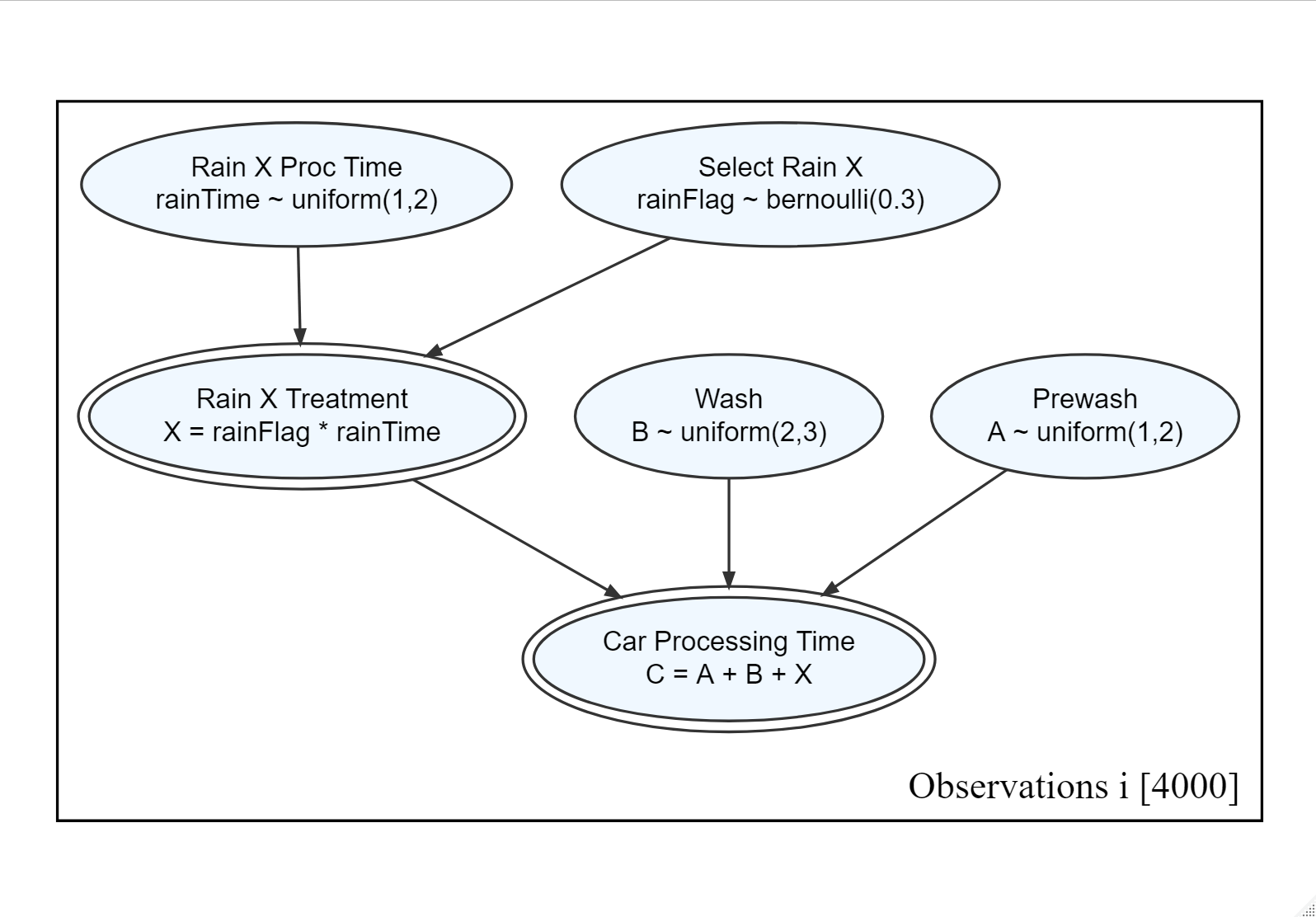

to follow the generative recipe of Figure 14.4 that will generate 4,000 draws (i.e. realizations) of the “C” random variable representing the processing time of an individual car.

For example, this code will generate 4,000 draws of `rainTime`

:

After simulating 4,000 draws for the entire car wash process, what percentage of those draws have a car processing time GREATER than 6 minutes? Report your percentage as a decimal with three significant digits (e.g. enter 0.342 for 34.2%). Since there is some randomness in your result, a range of answers are acceptable.
